Data center development is still discussed as a hunt for sites: a parcel near a substation, a tract with fiber, a county with tax incentives, or a utility territory promising fast service. That framing is now too narrow. The decisive question is not whether one parcel looks viable. It is whether the surrounding geography can repeatedly assemble power, land, connectivity, equipment, permission and institutional execution at the scale AI infrastructure requires.

That is the idea behind AI/DC Infrastructure Corridors, a new analytical layer in AIxEnergy Map. A corridor is not simply a cluster of data center pins. It is an infrastructure system: multiple projects connected by a common grid, development market, utility structure, policy regime and expansion pathway. The concept shifts the unit of analysis from the individual campus to the regional machinery capable of producing—or blocking—the next gigawatt.

From project concentration to infrastructure capacity

Traditional maps answer where data centers are located. Heat maps count projects. Suitability tools score land. Cluster polygons draw boundaries around nearby campuses. Each is useful, but none establishes whether a place has the operating depth, electrical pathway, developer ecosystem and public permission to function as a durable market.

The AIxEnergy model begins with observed development. It aggregates 0.25-degree cells into corridor polygons and then interprets each system through project count, disclosed load, operating status, land suitability, policy constraints and U.S. station-level grid screening. Supporting attributes can strengthen or weaken the interpretation, but attractive land alone cannot create a current corridor.

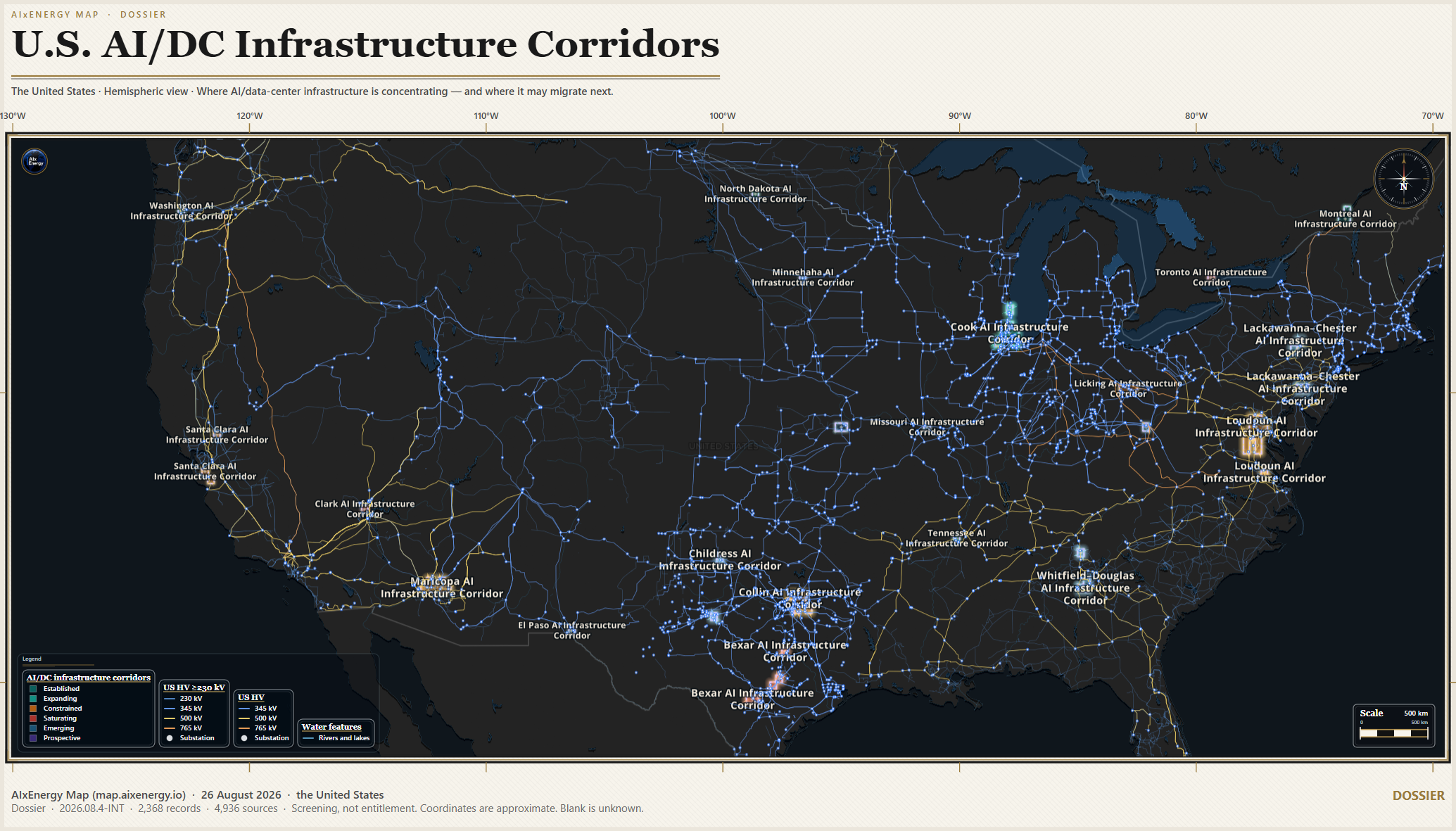

The current production dataset, AIC-1.2.0, identifies 86 current corridors and 28 prospective corridors across 39 countries. The current systems contain 1,327 map-plottable projects and 54.5 GW of documented announced IT load: 12.8 GW operational or energizing, 19.0 GW under construction and 22.7 GW in the pipeline. These are lower bounds. Many mature international markets disclose project counts but not load, so blank megawatts are treated as unknown—not zero.

The corridor system in 2026

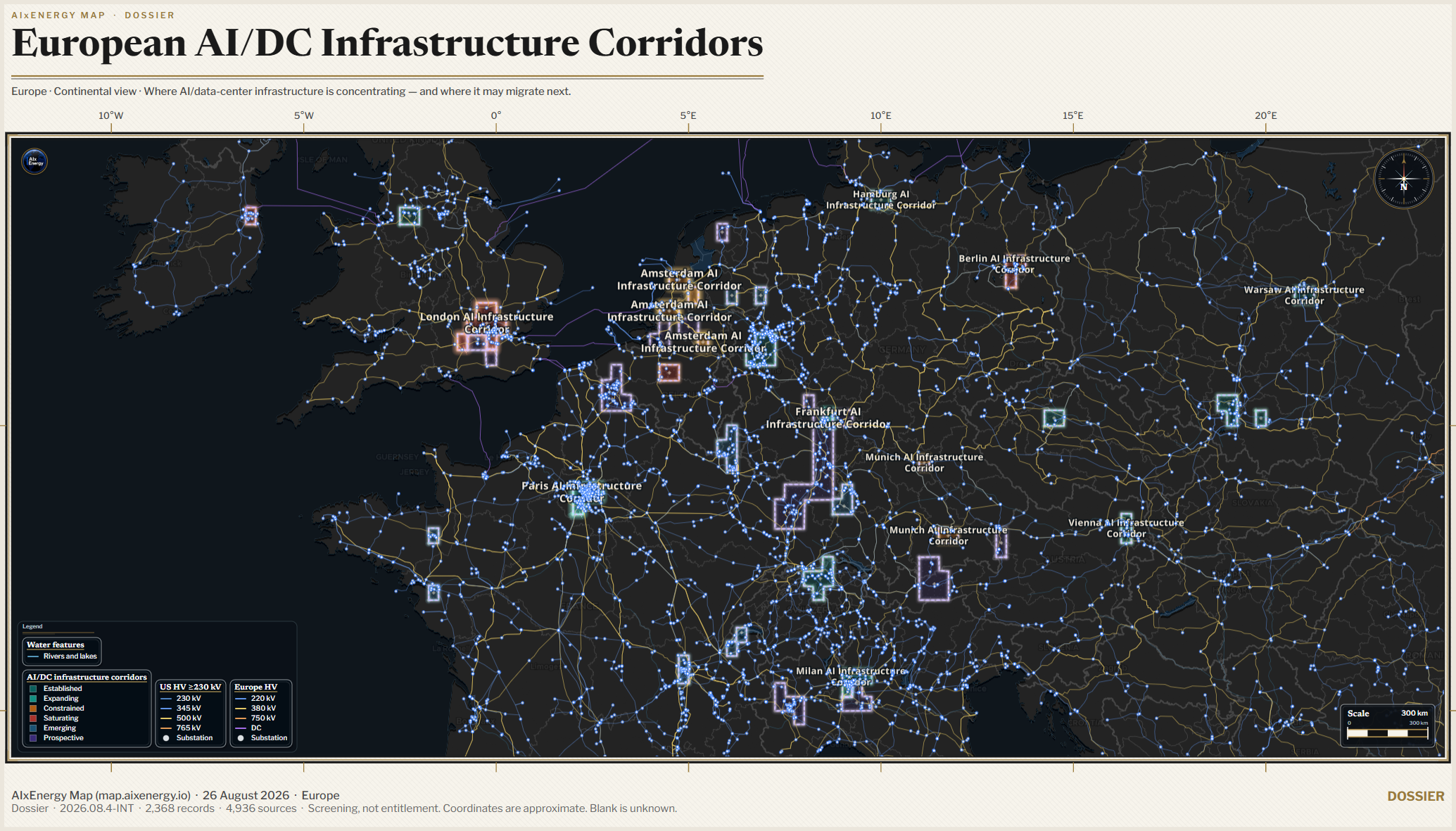

The map reveals a market that is both global and highly uneven. Europe contains 29 current corridors, North America 27 and Asia-Pacific 17. Only three current corridors—Cook County, Frankfurt and Milan—are classified as expanding. Thirteen are constrained, 25 are saturating and 21 are emerging. The labels describe the system’s stage, not its prestige or investment quality.

That distinction matters. Loudoun County is the deepest operating franchise in the dataset, but its next 250 to 500 MW is a different product from its installed base. Bexar County carries 5.72 GW of documented load, yet 4.0 GW remains pipeline and the U.S. screen classifies a 250 MW increment as structural. Sweetwater reaches global-tier scale through only two construction-heavy projects. London and Jakarta show large, mature ecosystems even though disclosed megawatts understate their physical scale. Similar totals can conceal radically different delivery risks.

Corridor size, stage and tier

The corridor system should not be reduced to one ranking. Size can mean project count, disclosed megawatts or geographic footprint, and those measures frequently disagree. Loudoun is the largest current corridor by project count at 160 and has 5.57 GW of disclosed load. Bexar and Maricopa disclose slightly more load—5.72 GW and 5.70 GW—but each has only about two dozen projects. London, Jakarta and Amsterdam rank near the top by project count while their published megawatts remain incomplete. A large bubble in one dimension may be much smaller in another.

Tier measures empirical scale in the current dataset: 17 corridors are global, 38 major regional and 31 regional. Stage describes development condition: 24 are established, three expanding, 13 constrained, 25 saturating and 21 emerging. A global tier is therefore not a claim that expansion is easy. Bexar is global and saturating; Loudoun is global and constrained; Cook and Frankfurt are global and expanding; Sweetwater is global but emerging. The same tier can contain fundamentally different infrastructure and investment products.

Stage is a model-derived description of present operating condition, not a fixed lifecycle that every corridor follows. Established corridors have operating depth but limited evidence of rapid expansion. Expanding corridors combine scale with active construction and pipeline momentum without crossing the model’s saturation threshold. Constrained corridors have identifiable limits—grid, land, policy or community—that are already shaping development. Saturating corridors face a higher cumulative burden from density, limited expansion pathways or permission. Emerging corridors have material concentration but have not yet developed the operating depth and institutional ecosystem of mature markets.

The practical use of stage is to frame the next decision. Established and expanding corridors can support franchise investment, although incremental megawatts still require separate diligence. Constrained and saturating corridors may retain operating value while demanding network upgrades, new generation, land preservation or policy intervention. Emerging corridors offer growth options but carry greater conversion and concentration risk. Stage can change as projects energize, infrastructure is built, constraints intensify or better evidence becomes available; it should be treated as a system diagnosis, not a permanent label or investment ranking.

Prospective corridors are handled separately. All 28 are classified as prospective and regional because the model is identifying early systems rather than awarding mature-market status. Their project counts, disclosed load, corridor area and Future Corridor Potential can be plotted alongside current corridors, but FCP is not interchangeable with Corridor Intensity Score. For cross-system visualization, Table 3 uses common physical variables—project count, disclosed MW and polygon area—and retains stage, tier, region and corridor type as categorical encodings.

Source: AIxEnergy AIC-1.2.0 production GeoJSON, 21 August 2026. Project-status values are operational or energizing / construction / pipeline. Known load is disclosed announced IT load; blank load remains unknown. Indeterminate grid classifications reflect insufficient comparable public station evidence.

Prospective corridors are hypotheses

The prospective layer is deliberately conservative. Future Corridor Potential measures the push from incumbent constraints and the pull of early projects, site conditions and supporting evidence. It is not a probability of development and it is not a headroom score. All 28 prospective corridors in this vintage are low confidence.

Ohio illustrates both the value and the danger of the concept. Ohio Prospective contains 13 projects and 12.55 GW of known announced load and screens with very high elasticity relative to the incumbent pressure associated with Licking. That makes it a serious receiving geography. It does not make every project financeable, every county permissive or every megawatt deliverable. Texas Prospective ranks first on Future Corridor Potential, but its elasticity remains very low. Market pressure can be intense precisely where infrastructure remains difficult.

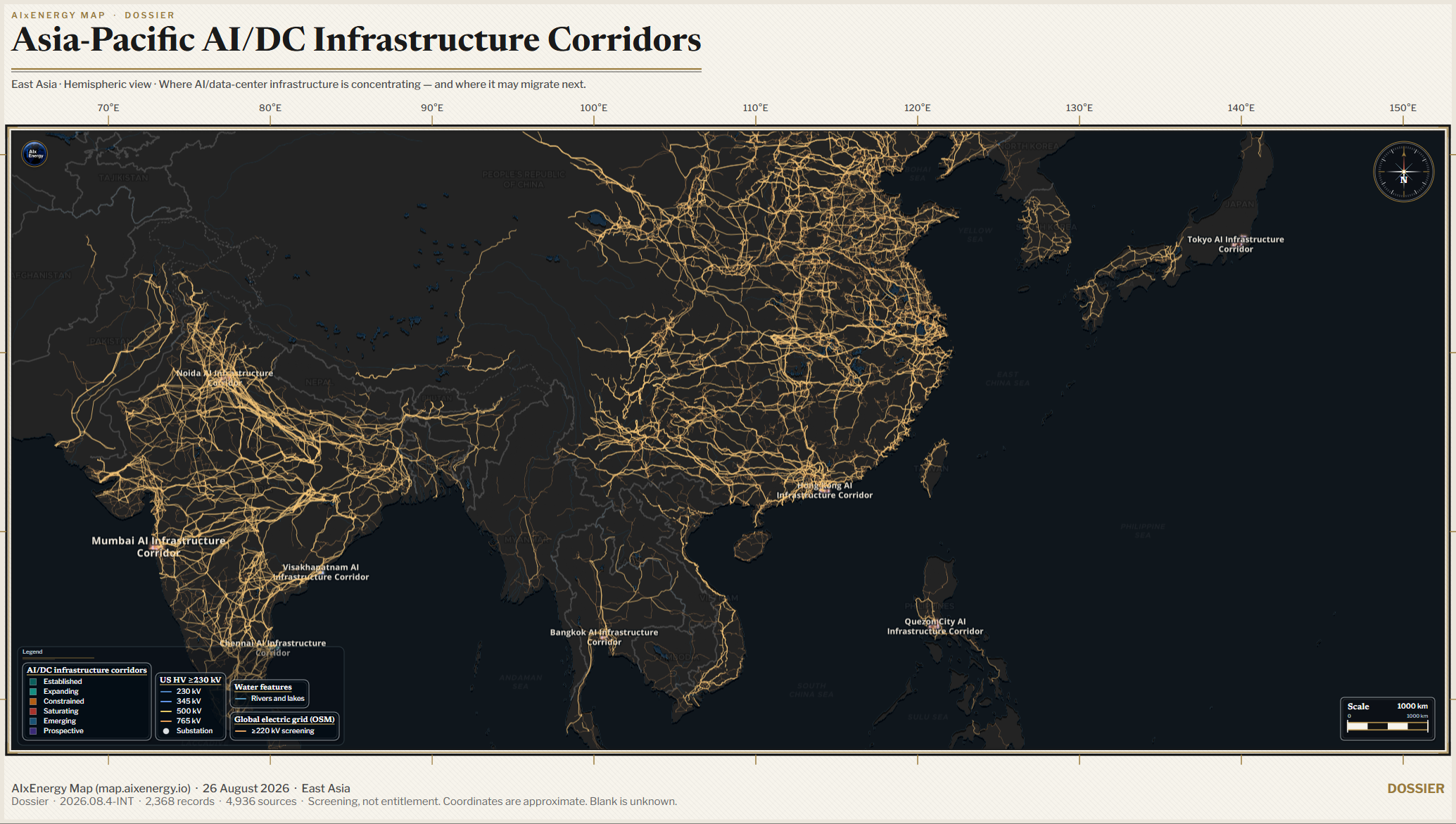

Outside the United States, the correct answer is often unknown. The present station screen is built on U.S. public data, so Amsterdam, London, Dublin, Frankfurt, Singapore–Johor, Mumbai, Sydney, Jakarta and Tokyo are electrically indeterminate—not constrained and not unconstrained. European and Asian transfer hypotheses must be validated with local station, transmission, queue and tariff evidence.

Why the Corridor framework changes investment decisions

For developers and hyperscalers, the framework separates franchise value from incremental delivery risk. Operating depth should be harvested where it exists, while new capacity is evaluated as a distinct grid-and-permission project. For utilities and grid planners, corridors reveal where one generic large-load process is inadequate: a network-constrained franchise, a land-constrained metro, a pipeline-heavy structural system and a politically constrained but electrically elastic market require different products and different institutional owners.

For energy developers, equipment suppliers and capital providers, the constraint itself becomes a market. Structural corridors create demand for new stations, transmission, generation, storage, transformer slots, breakers and repeatable interconnection packages. But pipeline megawatts should not be capitalized as though they were operating assets, and prospective labels should not command a premium without a measurable advantage and a credible pathway to permission.

The corridor is more than a new map layer. It is a way to see the data center buildout as an interacting system of electricity networks, land markets, equipment supply chains and political institutions. The next gigawatt will not go to the place with the most projects, the cheapest land or the loudest announcement. It will go where the entire corridor can execute.
